The A63B cabinets comply with the ETSI standard. A63B机柜符合ETSI标准。

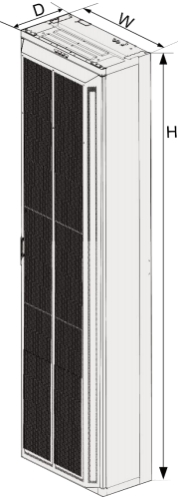

Cabinet Type机柜型号Available HeightInside the Cabinet机柜内部空间Dimensions (W × D × H)尺寸（Wx D x H）A63B85SU600mmx300mmx2200mm23.6inchx11.8inchx86.6inch

515mm

25mm

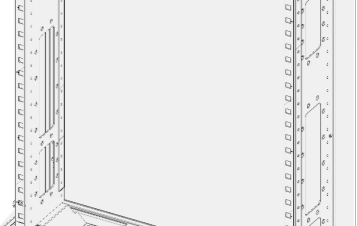

Width of the internal opening between mounting bars: 500 mm

Vertical distance between two mounting holes for mounting ears: 25 mm

Horizontal distance between two mounting holes for mounting ears: 515 mm

Distance between the cabinet column and the front door: 186.5 mm

Distance between the cabinet column and the rear door: 153.5 mm

机柜方孔条内部开档宽度：500mm；

立柱纵向两个挂耳安装孔中心距离：25 mm；

立柱横向两个挂耳安装孔中心距离：515 mm；

机柜立柱到机柜前门的距离：196.5 mm；

机柜立柱到机柜后门的距离：153.5 mm。
